Speciality Valve is an established 3 Way Plug Valve Manufacturer In India, offering precisely designed valves that are designed to provide stable flow control for complex piping systems. A 3 way plug valve is required in diverting, mixing, or isolating flow streams within industrial processes, providing versatility and compact design in harsh conditions.

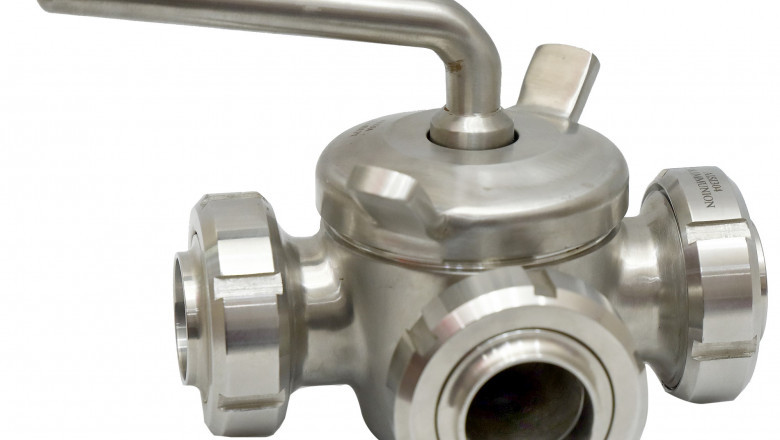

A 3 way plug valve is a quarter-turn rotary valve used to connect or redirect flow among three ports. The valves are mainly employed to blend or divert media like liquids, gases, or slurries in process flows. The plug within the valve rotates to various positions, governing which of the ports are open or shut, thus suiting applications where flow direction frequently changes.
Components of 3 Way Plug Valve
- Valve Body: The exterior casing, usually fabricated of cast steel, ductile iron, or stainless steel, contains the internal plug and seats.
- Plug: A taper or cylinder valve component that turns inside the body to manage flow paths.
- Ports: Three openings for media flow in and out, designed for T-port or L-port configurations.
- Stem: Link the handle or actuator to the plug to facilitate its turning.
- Seals and Seats: Ensure a snug seal between the valve body and plug to avoid leakage.
Working Mechanism of 3 Way Plug Valve
During operation, the plug is turned within the valve body by means of a lever or actuator. According to the configuration (T-port or L-port), the plug positions internal passages so that flow can be directed between various port combinations. It enables the user to split a line, redirect flow to another path, or combine two streams efficiently, all through a 90-degree turn.
Advantages of using 3 Way Plug Valve
- Compact and Efficient: Capacitates multiple flow paths in one unit.
- Rapid Action: Quarter-turn operation for rapid switching.
- Low Pressure Drop: Provides streamlined flow channels.
- Easy Maintenance: Straightforward structure with reduced moving components.
- Multi-Purpose Use: Suitable for diverting and blending applications.
Types of 3 Way Plug Valve
- T-Port 3 Way Plug Valve
- L-Port 3 Way Plug Valve
Applications
- Chemical and Petrochemical Plants
- Water Treatment Plants
- Oil and Gas Piping Systems
- Power Plants
As a top 3 Way Plug Valve Manufacturer In India, Speciality Valve is also a reliable and high-quality 3 way plug valves manufacturer with impeccable flow control in the most stringent industrial applications.
We provide valves in following description :
Body material: Duplex steel, Super duplex Steel (F51,F53,F55) , Cast iron, Ductile Iron, Cast Carbon (WCC,WCB, WC6),Stainless Steel [SS316, SS304, SS316L, SS904L, CF8, CF8M,F31L, F91].
Class: 150-2500; PN 10 – PN 450
Size: 1/2”- 48”.
Operations: Lever actuated, electric actuated, pneumatic actuated, gear actuated
Ends: Flanged, butt weld, socket weld, threaded
Visit now: https://www.specialityvalve.com/product-category/3-way-plug-valve/
ADDRESS - 37, NGR Street, P.N Palayam, Coimbatore, Tamil Nadu
