This article explores the purpose, working principle, material composition, usage, and growing demand for laser mirror, helping you understand why this tiny component has such a massive role in high-performance laser systems.

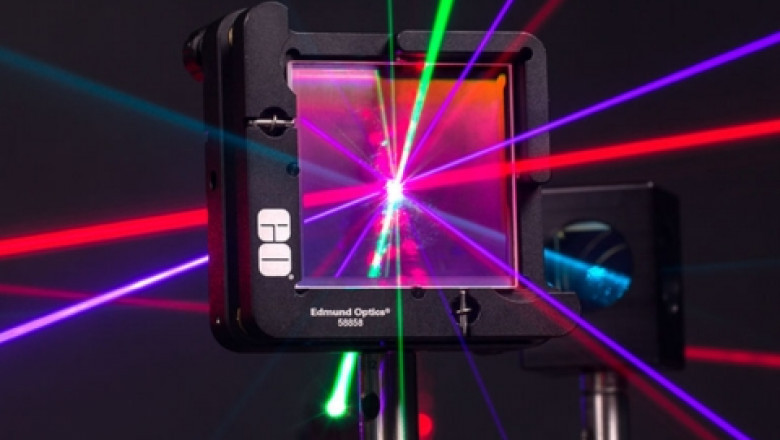

What is a Laser Mirror?
A laser mirror is a specially coated reflective surface designed to reflect laser beams at specific wavelengths with extremely high efficiency—often over 99%. These mirrors are optimized for minimal absorption and scattering, which ensures the integrity of the laser beam during reflection. They are typically used in laser cavities, beam delivery systems, cutting and welding equipment, and scientific instruments.
Unlike conventional mirrors that reflect a broad spectrum of light, laser mirrors are engineered to perform within narrow wavelength ranges. This precision is essential for maintaining beam quality, power, and directionality.
How Does a Laser Mirror Work?
To understand how a laser mirror works, it’s important to first grasp the nature of laser light. A laser emits coherent, monochromatic light—meaning all photons are in phase and of the same wavelength. Reflecting this kind of focused energy without loss or distortion requires a surface that is nearly perfect in both shape and coating.
Laser mirrors use dielectric coatings, which are multiple layers of thin-film materials that are designed to reflect light by interference rather than absorption. These coatings are tailored to specific laser wavelengths, such as 1064 nm for Nd:YAG lasers or 532 nm for frequency-doubled green lasers.
These dielectric coatings are much more efficient and damage-resistant than metallic coatings (like aluminum or silver), making them suitable for high-power applications.
Material Composition of Laser Mirrors
Laser mirrors are constructed from various substrate materials based on the intended application. Common materials include:
-
Fused Silica – Offers excellent thermal stability and low expansion, ideal for high-power lasers.
-
Zinc Selenide (ZnSe) – Often used in CO₂ lasers due to its transparency at 10.6 µm.
-
BK7 Glass – Suitable for low- to mid-power applications where cost-efficiency matters.
The surface of these materials is coated with dielectric layers through processes like electron-beam evaporation or ion-assisted deposition to form highly reflective coatings. The number of layers can range from a few to dozens, depending on the desired reflectivity and laser type.
Applications of Laser Mirrors
1. Industrial Laser Systems
In manufacturing, laser mirrors are integral to equipment used for cutting, welding, engraving, and marking. These mirrors redirect laser beams through complex optical paths to reach the work surface accurately. A misplaced or inefficient laser mirror can lead to loss of beam power or misalignment, affecting productivity.
2. Medical Devices
Laser-based medical procedures—such as LASIK eye surgery, dermatological treatments, and dental applications—rely heavily on the precise control of laser beams. Laser mirrors ensure the energy is directed exactly where needed, minimizing damage to surrounding tissue.
3. Scientific Research
Research labs use laser mirrors in experiments involving spectroscopy, quantum computing, and optical data transmission. These mirrors must offer ultra-low scatter and high reflectivity to avoid data corruption or measurement errors.
4. Military and Aerospace
Defense technologies employ laser mirrors in targeting systems, rangefinders, and directed energy weapons. In these scenarios, reliability under extreme environmental conditions is critical, and specialized coatings are used to resist thermal and mechanical stress.
5. Communication Systems
Laser mirrors also play a role in fiber optics and other communication technologies, especially where beam alignment and signal clarity are vital. Even a minor deviation in beam direction caused by an inferior mirror can result in signal loss or latency.
Customization and Specifications
Manufacturers often offer laser mirrors with highly customizable specifications, depending on the customer's requirements. These may include:
-
Wavelength Range – Mirrors can be optimized for ultraviolet (UV), visible, near-infrared (NIR), or mid-infrared (MIR) lasers.
-
Angle of Incidence – Most mirrors are designed for either normal (0°) or specific angles (e.g., 45°) of incidence.
-
Reflectivity Percentage – This could range from 99% to 99.999%, depending on the sensitivity of the application.
-
Laser Damage Threshold – Indicates how much laser energy the mirror can handle before degrading.
These customization options allow system integrators and engineers to design highly specialized laser setups that are reliable and efficient.
Challenges in Handling Laser Mirrors
Laser mirrors may look robust but are extremely sensitive. Even a minor scratch or contamination can severely impact performance. This is why handling and cleaning procedures are highly controlled.
Special gloves, antistatic environments, and non-abrasive tools are used to manage these mirrors. A single fingerprint or speck of dust can reduce reflectivity or introduce scatter, resulting in operational inefficiencies or even system failure.
Global Market and Demand Trends
The global demand for laser mirrors is growing in parallel with the rise of laser-based technologies. According to recent market reports, the precision optics industry is experiencing significant growth, driven by advances in photonics, autonomous vehicles, semiconductor manufacturing, and defense.
As industries shift toward automation and digital precision, the reliance on robust optical components like laser mirrors will continue to grow. Emerging fields like additive manufacturing (3D printing) and laser cleaning also present new opportunities for the integration of advanced mirror technologies.
Buying Guide: What to Consider
When sourcing a laser mirror, several factors should be considered:
-
Application Type – Industrial, medical, scientific, or defense use.
-
Laser Type – CO₂, Nd:YAG, diode, fiber laser, etc.
-
Wavelength Compatibility – Match the mirror to your laser’s operational wavelength.
-
Reflectivity & Angle – Choose according to beam path design.
-
Coating Durability – Especially important for high-power or outdoor applications.
-
Budget and Volume – High-performance mirrors can be costly but are worth the investment for mission-critical tasks.
Working with reputable optical suppliers ensures you get laser mirrors with verified performance specs, quality control, and support. Many companies also offer testing and customization services to optimize mirrors for your system.
Final Thoughts
A laser mirror may seem like a small part of a larger laser system, but it holds monumental importance in ensuring efficiency, precision, and safety. Whether you're designing a cutting-edge research experiment, building a surgical laser device, or setting up an industrial processing line, the right mirror can make all the difference.
The ever-growing landscape of laser-based technology continues to push the boundaries of what's possible, and with it, the humble laser mirror evolves in sophistication and demand. Investing in the right mirror is not just a technical decision—it’s a strategic one that reflects directly on your system’s performance and reliability.
